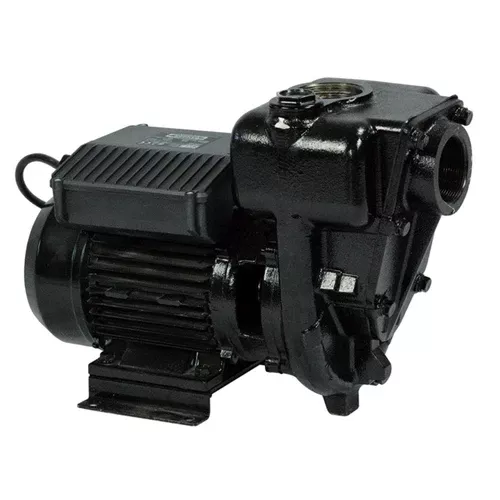

PIUSI E300 132 GPM 230V AC Diesel Fuel Pump
The PIUSI E300 is an electric pump with open impeller suitable for all applications in which high-flows are required. Thus, it is the ideal equipment for topping up and transferring diesel from drums. It comes with an incorporated check valve in the suction port to prevent the siphon effect while ensuring automatic re-priming.
Features
- AC Continuous Duty
- Sturdy Structure
- IP44 Protection
- Sliding Rotation
- Long Life
Specifications
- Compatible Fluids: Diesel
- Type: AC Pumps
- Fluid Type: Diesel
- Inlet/Outlet: 2 in. NPT
- Flow Rate: 132 GPM (550 LPM)
- Single Phase Motor: 230V/60Hz
- Power: 1500 Watt
- Amp. 9.2 Max.
- RPM: 2580
- Body: Cast Iron
- Rotor: Sintered Steel
- Vanes: Acetal Resin
- Shaft: Steel
- Seal: Viton
Downloads
E300 Data Sheet
