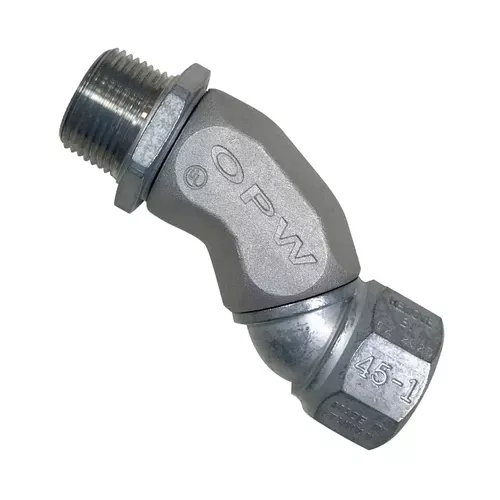

OPW 45° 1 in. Hose Swivel
The OPW 45 Series Swivel is engineered for self-service gasoline applications, offering smooth nozzle maneuverability and a improved fueling experience for customers. The 45-5075 model features a 1″ connection and is designed to be installed between the nozzle and hose, reducing hose strain and improving longevity.
This swivel increases flexibility during fueling, helping prevent kinks and extending the life of your fueling equipment like hoses and nozzles.
Model : 45-5075
Features
- Compact, attractive profile – for a sleek, modern appearance.
- Secure design – not repairable or rebuildable for certainty of operation. Every OPW 45 is factory assembled and tested.
- Better flow performance – less restriction means higher refueling speed.
- Unique two planes of rotation – for easy nozzle positioning and hose life.
- Listed by Underwriters Laboratories, Inc. – UL & ULC Listed.
- Design Working Pressure – OPW products are designed to work at 50 PSI (3.45 bar) maximum pressure.
Caution
Pipe sealant must be used on threaded connections. Do not use teflon tape. Failure to comply may create hazardous conditions.
IMPORTANT
OPW products should be used in compliance with applicable federal, state, provincial, and local laws and regulations. Product selection should be based on physical specifications and limitations and compatibility with the environment and materials to be handled. OPW MAKES NO WARRANTY OF FITNESS FOR A PARTICULAR USE.
Materials
- Body: aluminum
- Outlet Adaptor: zinc
- Inlet Adaptor: zinc
- Seals: Nitrile Rubber
