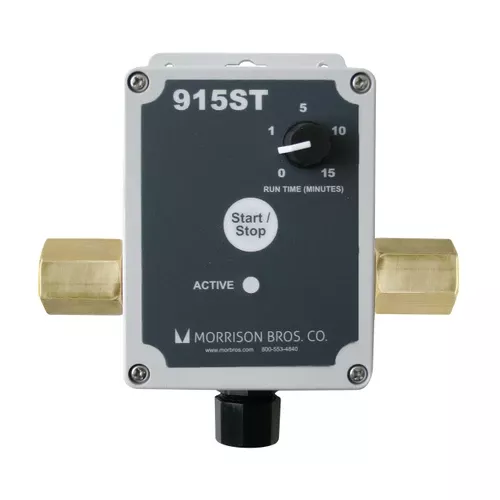

The 915ST Solenoid is designed to work with the 915 Alarm Console to provide pneumatic control for devices like diaphragm pumps using only a wall mounted power supply. The 915ST has a timer function and is normally closed.
Note: Not approved for use in explosive atmosphere locations.
Features
- AC/DC adapter
- Normally-closed (fail safe)
- Adjustable timer (0 to 15 minutes)
- Controlled by start/stop button
- Solenoid deactivated by console on input alarm
- Can be located up to 300 feet from console
Specifications
- Nominal Input Voltage: 12 VDC
- Maximum Current Draw: 1 Amps
- Maximum Power Consumption: 12 Watts
- Operating Environment: -4°F to 104°F (-0°C to 40°C) to 100% humidity non-condensing – Indoor Use Only
- Maximum Wiring Distance: Maximum wiring distance between the 915 Tank Alarm Console and the Solenoid Valve Unit is 300 ft.
- Maximum Working Pressure: 225 PSI
Downloads
915S – 915ST – Solenoid Unit – Installation – Operation – Maintenance Instructions.pdf (PDF Download)
