Reel Roller Guide Repair Kits for Graco XD 40, XD 50, and XD 60 Series hose reels. Suitable for air, water, DEF, and waste oil hose reel applications.
Roller Guide with Bracket Kit Contents
- Screw, cap, flange head – 4 qty
- Nut, hex, flange head – 8 qty
- Screw, cap, flange head – 4 qty
- Post, corner – 4 qty
- Plate, roller – 1 qty
- Pin, roller, short – 2 qty
- Tube, roller, short – 2 qty
- Pin, roller, long – 2 qty
- Tube, roller, long – 2 qty
- Cap, roller – 8 qty
NOTE: Not pictured

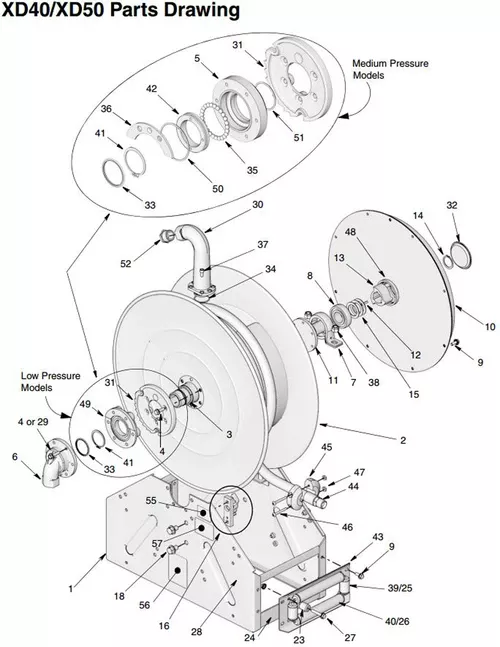

Roller Guide Kit Contents
- Screw, cap, flange head – 14 qty – Part 9
- Post, corner – 4 qty – Part 23
- Cap, roller – 8 qty – Part 24
- Tube, roller- 2 qty – Part 25
- Tube, roller – 2 qty – Part 26
- Screw, cap, flange head – 4 qty – Part 27
- Nut, hex, flange head – 8 qty – Part 28
- Pin, roller – 2 qty – Part 39
- Pin, roller – 2 qty – Part 40
- Plate, roller – 1 qty – Part 43
Downloads
Repair & Instructions Manual (PDF Download)
