Repair Kits for Graco XD 30 Air/Water, Oil, Grease, DEF & Fuel-Evacuation Hose Reels.

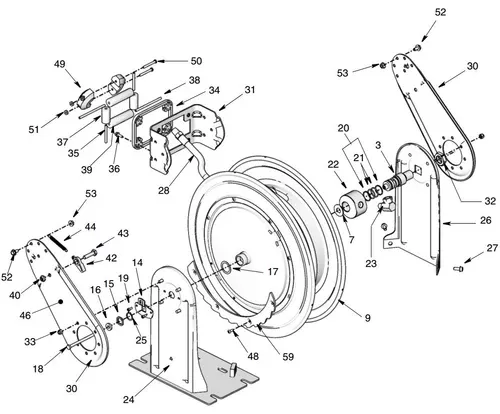

Spool, Hose Guide, & Latch Kit Contents
- Spool Kit
- Lubricant, grease – 1 qty – Part not pictured
- Key, square – 1 qty – Part not pictured
- Rivet, blind – 4 qty – Part not pictured
- Bearing, needle, spring side – 1 qty – Part not pictured
- Bearing, needle, swivel side – 1 qty – Part not pictured
- Washer, flat, spring side – 1 qty – Part 7
- Shaft, spring – 1 qty – Part not pictured
- Hub, power, spring – 1 qty – Part 14
- Flange, set, black – 1 qty – Part 9
- Cover, spring, black – 1 qty – Part not pictured
- Gasket – 1 qty – Part not shown
- Spring, power, 24.5 turn – 1 qty – Part 10
- Hose Guide Kit
- Bracket, roller – 1 qty – Part 34
- Pin, roller – 2 qty – Part 35
- Bolt, M6 x 20 w/patch – 4 qty – Part 36
- Roller, hose – 2 qty – Part 37
- Pin, roller – 2 qty – Part 38
- Roller, hose – 2 qty – Part 39
- Ratch & Latch Kit
- Nut, lock – 1 qty – Part 40
- Pawl, bushing – 1 qty – Part not pictured
- Ratchet, pawl – 1 qty – Part 42
- Bolt, 10 x 40 – 1 qty – Part 43
- Spring – 1 qty – Part 44
- Screw – 4 qty – Part 48
- Ratchet – 1 qty – Part 59
Swivel & Swivel Seal Contents
- Swivel Kit
- Shaft, swivel – 1 qty – Part 3
- O-Ring – 2 qty – Part 20
- O-Ring, backup – 2 qty – Part 21
- Elbow, swivel – 1 qty – Part 22
- Swivel Seal Kit
- O-Ring – 2 qty – Part 20
- O-Ring, backup – 2 qty – Part 21
Downloads
Instructions Manual (PDF Download)
