Graco XD 30 Hose Reel Hose Guide Kit

Repair Kits for Graco XD 30 Air/Water, Oil, Grease, DEF & Fuel-Evacuation Hose Reels.

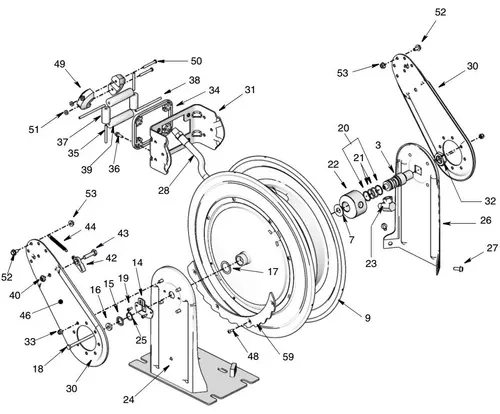

Spool, Hose Guide, & Latch Kit Contents

• Spool Kit
• Lubricant, grease – 1 qty – Part not pictured
• Key, square – 1 qty – Part not pictured
• Rivet, blind – 4 qty – Part not pictured
• Bearing, needle, spring side – 1 qty – Part not pictured
• Bearing, needle, swivel side – 1 qty – Part not pictured
• Washer, flat, spring side – 1 qty – Part 7
• Shaft, spring – 1 qty – Part not pictured
• Hub, power, spring – 1 qty – Part 14
• Flange, set, black – 1 qty – Part 9
• Cover, spring, black – 1 qty – Part not pictured
• Gasket – 1 qty – Part not shown
• Spring, power, 24.5 turn – 1 qty – Part 10
• Hose Guide Kit
• Bracket, roller – 1 qty – Part 34
• Pin, roller – 2 qty – Part 35
• Bolt, M6 x 20 w/patch – 4 qty – Part 36
• Roller, hose – 2 qty – Part 37
• Pin, roller – 2 qty – Part 38
• Roller, hose – 2 qty – Part 39
• Ratch & Latch Kit
• Nut, lock – 1 qty – Part 40
• Pawl, bushing – 1 qty – Part not pictured
• Ratchet, pawl – 1 qty – Part 42
• Bolt, 10 x 40 – 1 qty – Part 43
• Spring – 1 qty – Part 44
• Screw – 4 qty – Part 48
• Ratchet – 1 qty – Part 59

Swivel & Swivel Seal Contents

• Swivel Kit
• Shaft, swivel – 1 qty – Part 3
• O-Ring – 2 qty – Part 20
• O-Ring, backup – 2 qty – Part 21
•  Elbow, swivel – 1 qty – Part 22
• Swivel Seal Kit
• O-Ring – 2 qty – Part 20
• O-Ring, backup – 2 qty – Part 21

Downloads

Hose Guide Kits for XD30 Hose Reels (PDF Download)
