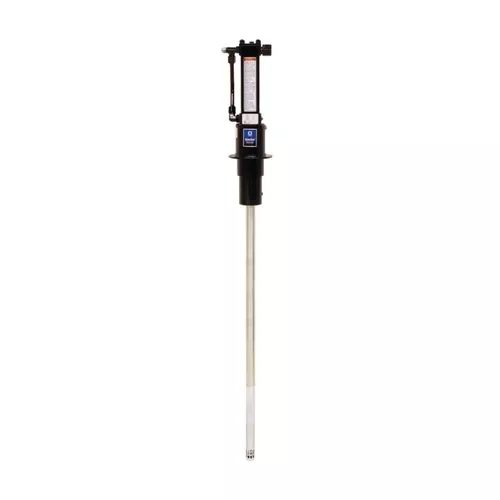

The Hydraulic Dyna-Star pumps from Graco are hydraulically-powered, single piston lubricant pump, requiring no electrical power. They provide reliable, quiet, ice-free performance at maximum pressure and low flow rates and are up to three times more energy efficient than comparable compressed-air systems
Compatible Fluid: Oil, Gear Lube, ATF
Note: Use mounting and optional suction tubes for tank top mount. Use optional bracket and suction hose kit for wall mount.
Features
- Built-In Reliability – Self-lubricating vertical design for long life and reliable operation in high-vibration environments
- Quiet Hydraulic Motor – No need for add-on mufflers
- High-Efficiency Motor – Uses less hydraulic oil
- Up to three times more energy efficient than comparable compressed systems
Specifications
- Type: Hydraulic Piston Pump
- Pump Ratio: 1:1
- Compatible Fluid: Oil, Gear Lube, ATF
- Fluid Inlet Size: 1-1/2 in. NPT
- Fluid Outlet Size: 1/2 in. Female NPT
- Maximum Continuous Cycle Rate: 60 CPM
- Maximum Intermittent Cycle Rate: 60 CPM
- Maximum Flow Rate: 3 GPM
- Maximum Fluid Output Pressure: 1500 PSI
- Maximum Working Pressure: 1500 PSI (10.3 MPa)
- Wetted Material: Steel, Copper, Leather
Applications
- Low pressure, high volume oil transfer
- High pressure, high volume grease dispense
- Heavy duty dealerships
- Fleet service facilities
- Service shops
- In-plant
- Lube trucks
- Mining
Downloads
Instructions & Parts List (PDF Download)
