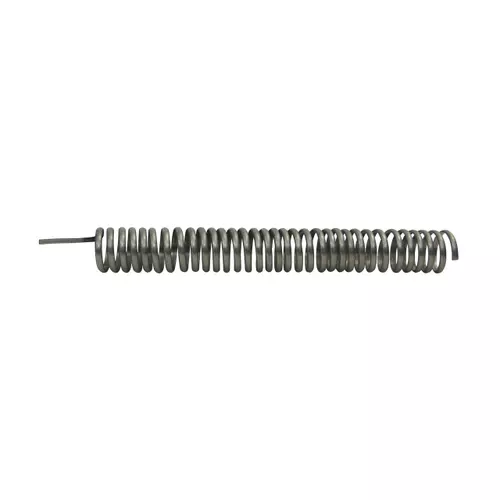

Dixon Galvanized Steel Spring Guards are designed to protect the hose at the most vulnerable point, immediately behind the couplings. These spring guards include a 2 in. end tang, which allows the end guard to be secured under a clamp or ferrule.
Note: Other custom sizes and lengths available. Please call 1 (800) 333-3331 for more information.
Specifications
| Size | Length | Approx. of Coils | Wire Gauge |
| 3/4 in. | 12 in. | 33 | 0.175 in. |
| 1 in. | 12 in. | 33 | 0.175 in. |
| 1 1/4 in. | 14 in. | 39 | 0.175 in. |
| 1 1/2 in. | 14 in. | 39 | 0.175 in. |
| 1 3/4 in. | 16 in. | 44 | 0.175 in. |
| 2 in. | 16 in. | 44 | 0.280 in. |
| 2 1/2 in. | 18 in. | 50 | 0.280 in. |
| 3 in. | 18 in. | 50 | 0.280 in. |
