FKM-GFLT seals with PTFE U-Cap kit for Dixon’s 5500 API couplers.
FKM-GFLT Temperature Rating: -30°F to 400°F (-34°C to 204°C)

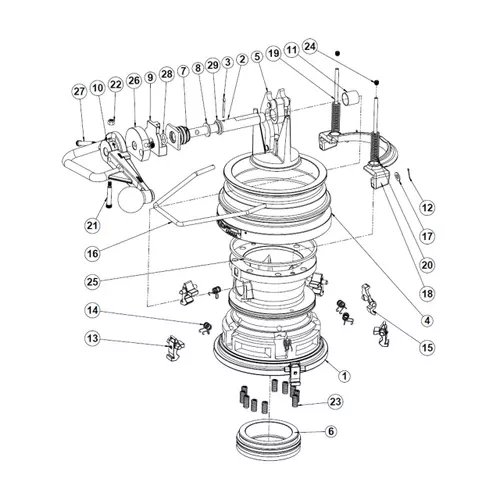

Kit Contents
- (1) – 112584 – Replaceable Nose Seal, FKM-GFLT – Item 6.3
- (1) – 112632 – O-Ring 2-349 FKM-GFLT – Item 6.2
- (2) – 112605 – O-Ring 2-208 FKM-GFLT – Item 7.2
- (2) – 112606 – O-Ring 2-216 FKM-GFLT – Item 7.3
- (1) – 112621 – Shoulder Screw – 1-1/2 in. Long – Item – Item 21
- (1) – 112626 – Shoulder Screw – 2-1/4 in. Long – Item 27
- (2) – 112620 – Locknut SS/Nylon – Item 22
- (1) – 112634 – U-Seal Flexiseal 349 – Item 6.5
- (1) – 112595 – U-Seal, PTFE208 – Item 7.4
- (1) – 112640 – U-Seal, PTFE 216 – Item 7.5
- (1) – 112307 – Cotter – Item 3
Downloads
Product Manual (PDF Download)
