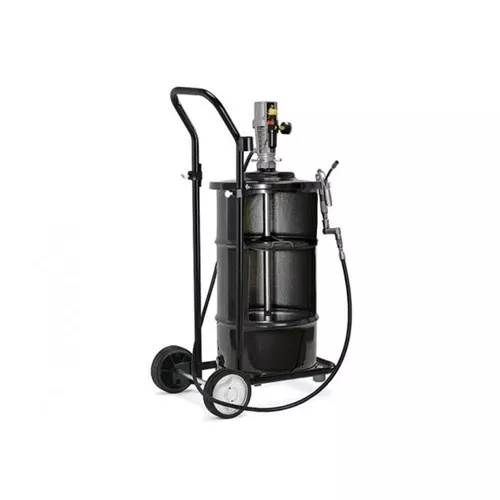

High pressure, low volume portable grease dispensing for automotive and general industry use. Not recommended for piped overhead systems. Ideal for use with grease up to NLGI 2.
Includes
- Bare Pump
- Bung Adapter
- Fluid Hose (10″ x 3/8″)
- F/R Auto Drain 1/4″ NPT(F)
- Follower Plate
- Drum Cover
- Dolly Base 2 front wheels & 2 stabilizing feet
- Comfort Grip Grease Handle
- NOTE: Pump packages include all hoses and adapters required for connecting an oil pump to the air supply, and oil dispense line.
- Balcrank does not provide wall mounting hardware (nuts, bolts, and anchors) for lube packages
- Drum and Pail not included
Specifications
- Pump ratio 55:1
- Operating air pressure range 20 to 140 PSI (1.5 – 10 bar)
- Pump delivery, 100 PSI
- air pressure and free flow: 1.2 lb./m (.51 kg/m)
- Air consumption (100 PSI & 8 G/M) 5.8 SCFM
- Max fluid stall pressure at 150 PSI
- 7,700 PSI (550 bar)
- Cycles per LB 318
- Air inlet 1/4″ NPT (F)
- Fluid outlet 1/2″ NPT (F)
- Effective air piston diameter 2 3/4″ (70 m)
- Wetted materials Steel, Zinc, Nitrile Rubber, Teflon®
Downloads
Product Manual (PDF Download)
