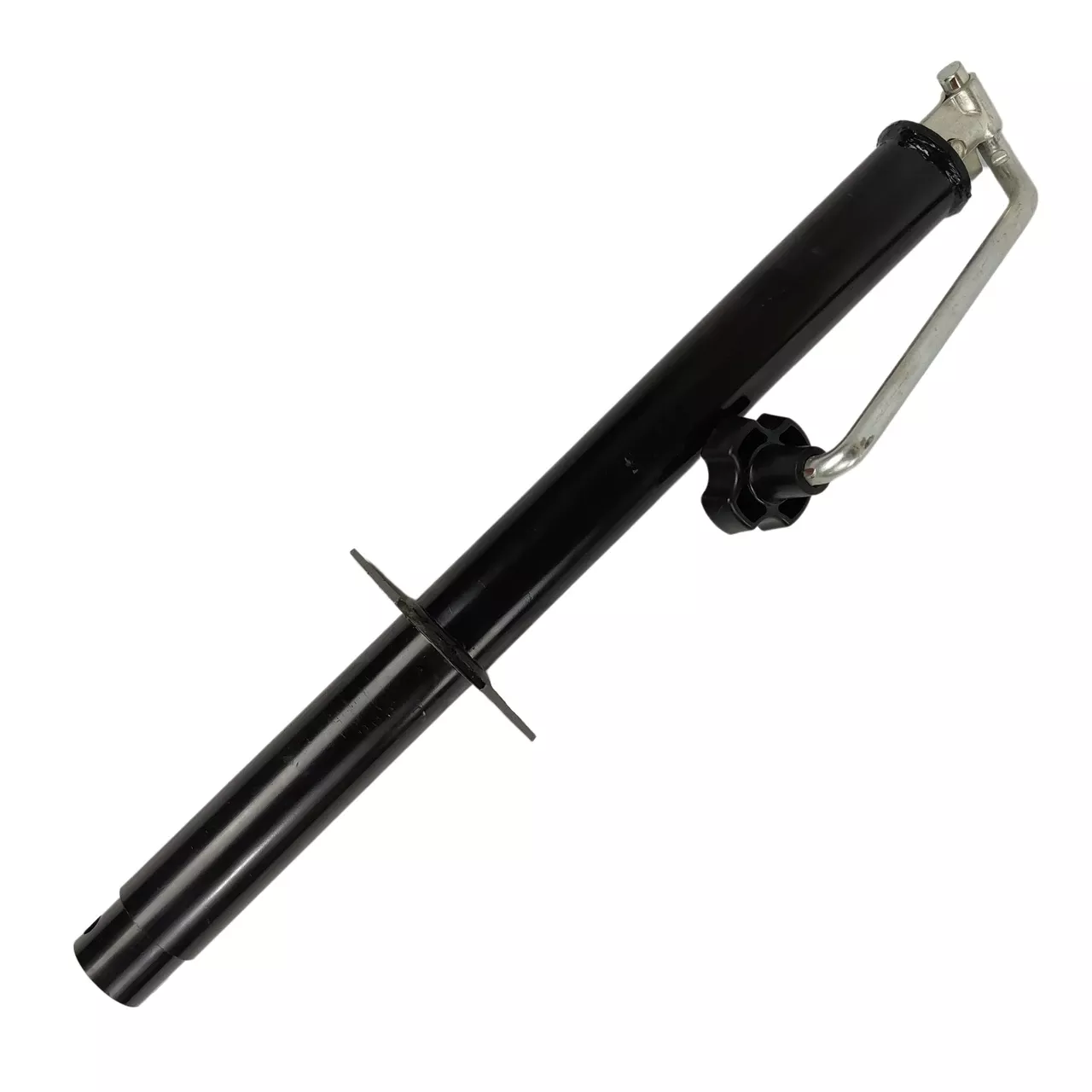

Lift capacity: 1000lbs
Support capacity: N/A
Bracket height (bottom of bracket to bottom of jack tube): 8″ Retracted & 24″ Extended
Lift/stroke: 16″
Measurement from mounting bracket to tallest point of jack: : 13 7/8″
Measurement from mounting bracket to bottom of outer tube: 6 3/4″
Tube diameter: 1 5/8″ Inner & 1 3/4″ Outer
Handle winding radius: 9″
