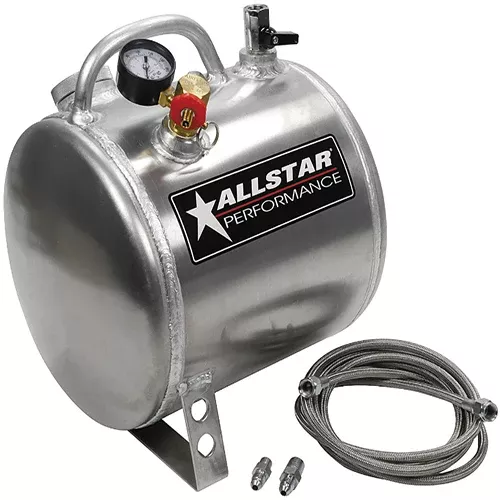

The Allstar Engine Oil Pressure Primer Tank supplies initial oil to the oil pump in engines equipped with a crank driven oil pump. Fill primer tank with engine oil then apply compressed air to force the fluid throughout the engine via the oil pressure sender/switch port to pre-lube the entire engine including the oil pump. Tank features include a fill cap with safety pressure release slot (sealed by o-ring), an easy to read pressure gauge and a quarter turn on/off supply valve. The oil supply line is a durable 90″ long steel braided hose with -4AN ends and includes a fitting with male 1/8″-27NPT threads. Adapter fittings sold separately.
| Brand | Allstar Performance |
| Part Number | ALL10535 |
| Intended Application | Oil Pump Primer |
| Length | 11 in |
| Diameter | 9 in |
| Capacity | 4 qt |
| Cap Included | Yes |
| Outlet Quantity | 1 |
| Outlet Size | 1/8 in NPT |
| Outlet Style | Female |
| Shutoff Valve | Yes |
| Fittings Included | Yes |
| Fitting 1 Quantity | 1 |
| Fitting 1 Side 1 Size | 1/8 in NPT |
| Fitting 1 Side 1 Style | Male |
| Fitting 1 Side 2 Size | 4 AN |
| Fitting 1 Side 2 Style | Male |
| Fitting 2 Quantity | 1 |
| Fitting 2 Side 1 Size | 1/8 in NPT |
| Fitting 2 Side 1 Style | Female |
| Fitting 2 Side 2 Size | 4 AN |
| Fitting 2 Side 2 Style | Male |
| Hose Included | Yes |
| Hose Size | 4 AN |
| Hose Length | 90 in |
| Pressure Gauge | Yes |
| Material | Aluminum |
| Color | Natural |
| Finish | Natural |
| Quantity | Kit |
